Beginners Guide to SELinux Modes in Linux

How SELinux Protects Resources

SELinux provides a critical security purpose in Linux, permitting or denying access to files and other resources that are significantly more precise than user permissions. File permissions control which users or groups of users can access which specific files. However, a user given read or write access to any specific file can use that file in any way that user chooses, even if that use is not how the file should be used.

For example, with write access to a file, should a structured data file designed to be written to using only a particular program, be allowed to be opened and modified by other editors that could result in corruption? File permissions cannot stop such undesired access. They were never designed to control how a file is used, but only who is allowed to read, write, or run a file.

SELinux consists of sets of policies, defined by the application developers, that declare exactly what actions and accesses are proper and allowed for each binary executable, configuration file, and data file used by an application. This is known as a targeted policy because one policy is written to cover the activities of a single application. Policies declare predefined labels that are placed on individual programs, files, and network ports.

Why use Security Enhanced Linux?

Not all security issues can be predicted in advance. SELinux enforces a set of access rules preventing a weakness in one application from affecting other applications or the underlying system. SELinux provides an extra layer of security; it also adds a layer of complexity which can be off-putting to people new to this subsystem. Learning to work with SELinux may take time but the enforcement policy means that a weakness in one part of the system does not spread to other parts. If SELinux works poorly with a particular subsystem, you can turn off enforcement for that specific service until you find a solution to the underlying problem.

SELinux has three modes:

  • Enforcing: SELinux is enforcing access control rules. Computers generally run in this mode.
  • Permissive: SELinux is active but instead of enforcing access control rules, it records warnings of rules that have been violated. This mode is used primarily for testing and troubleshooting.
  • Disabled: SELinux is turned off entirely: no SELinux violations are denied, nor even recorded. Discouraged!

Basic SELinux Security Concepts

Security Enhanced Linux (SELinux) is an additional layer of system security. The primary goal of SELinux is to protect user data from system services that have been compromised. Most Linux administrators are familiar with the standard user/group/other permission security model. This is a user and group based model known as discretionary access control. SELinux provides an additional layer of security that is object-based and controlled by more sophisticated rules, known as mandatory access control.

To allow remote anonymous access to a web server, firewall ports must be opened. However, this gives malicious people an opportunity to crack the system through a security exploit. If they succeed in compromising the web server process they gain its permissions. Specifically, the permissions of the apache user and the apache group. That user and group has read access to the document root, /var/www/html. It also has access to /tmp, and /var/tmp, and any other files and directories that are world writable.

SELinux is a set of security rules that determine which process can access which files, directories, and ports. Every file, process, directory, and port has a special security label called an SELinux context. A context is a name used by the SELinux policy to determine whether a process can access a file, directory, or port. By default, the policy does not allow any interaction unless an explicit rule grants access. If there is no allow rule, no access is allowed.

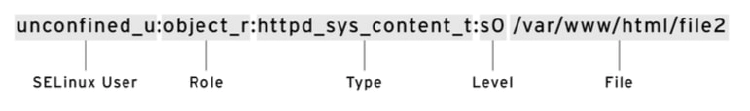

SELinux labels have several contexts: user, role, type, and sensitivity. The targeted policy, which is the default policy enabled in Red Hat Enterprise Linux, bases its rules on the third context: the type context. Type context names usually end with _t.

SELinux file context

The type context for a web server is httpd_t. The type context for files and directories normally found in /var/www/html is httpd_sys_content_t. The contexts for files and directories normally found in /tmp and /var/tmp is tmp_t. The type context for web server ports is http_port_t.

Apache has a type context of httpd_t. There is a policy rule that permits Apache access to files and directories with the httpd_sys_content_t type context. By default files found in /var/ www/html and other web server directories have the httpd_sys_content_t type context. There is no allow rule in the policy for files normally found in /tmp and /var/tmp, so access is not permitted. With SELinux enabled, a malicious user who had compromised the web server process could not access the /tmp directory.

The MariaDB server has a type context of mysqld_t. By default, files found in /data/mysql have the mysqld_db_t type context. This type context allows MariaDB access to those files but disables access by other services, such as the Apache web service.

Many commands that deal with files use the -Z option to display or set SELinux contexts. For instance, ps, ls, cp, and mkdir all use the -Z option to display or set SELinux contexts.


[root@host ~]# ps axZ
LABEL                             PID TTY      STAT   TIME   COMMAND
system_u:system_r:init_t:s0         1 ?        Ss     0:09   /usr/lib/systemd/...
system_u:system_r:kernel_t:s0       2 ?        S      0:00   [kthreadd]
system_u:system_r:kernel_t:s0       3 ?        S      0:00   [ksoftirqd/0]
...output omitted...
[root@host ~]# systemctl start httpd
[root@host ~]# ps -ZC httpd
LABEL                             PID TTY          TIME CMD
system_u:system_r:httpd_t:s0     1608 ?        00:00:05 httpd
system_u:system_r:httpd_t:s0     1609 ?        00:00:00 httpd
...output omitted...
[root@host ~]# ls -Z /home
drwx------. root    root    system_u:object_r:lost_found_t:s0 lost+found
drwx------. student student unconfined_u:object_r:user_home_dir_t:s0 student
drwx------. visitor visitor unconfined_u:object_r:user_home_dir_t:s0 visitor
[root@host ~]# ls -Z /var/www
drwxr-xr-x. root root system_u:object_r:httpd_sys_script_exec_t:s0 cgi-bin
drwxr-xr-x. root root system_u:object_r:httpd_sys_content_t:s0 error
drwxr-xr-x. root root system_u:object_r:httpd_sys_content_t:s0 html
drwxr-xr-x. root root system_u:object_r:httpd_sys_content_t:s0 icons

Changing the Current SELinux Mode

The SELinux subsystem provides tools to display and change modes. To determine the current SELinux mode, run the getenforce command. To set SELinux to a different mode, use the setenforce command:

[user@host ~]# getenforce
Enforcing

[user@host ~]# setenforce
usage:  setenforce [ Enforcing | Permissive | 1 | 0 ]

[user@host ~]# setenforce 0

[user@host ~]# getenforce
Permissive

[user@host ~]# setenforce Enforcing

[user@host ~]# getenforce
Enforcing

Alternatively, you can set the SELinux mode at boot time by passing a parameter to the kernel: the kernel argument of enforcing=0 boots the system into permissive mode; a value of enforcing=1 sets enforcing mode. You can also disable SELinux completely by passing on the kernel parameter selinux=0. A value of selinux=1 enables SELinux.

Setting the default SELinux Mode

You can also configure SELinux persistently using the /etc/selinux/config file. In the example below (the default configuration), the configuration file sets SELinux to enforcing. The comments also show the other valid values: permissive and disabled.


# This file controls the state of SELinux on the system.
# SELINUX= can take one of these three values:
#     enforcing - SELinux security policy is enforced.
#     permissive - SELinux prints warnings instead of enforcing.
#     disabled - No SELinux policy is loaded.
SELINUX=enforcing
# SELINUXTYPE= can take one of these two values:
#     targeted - Targeted processes are protected,
#     minimum - Modification of targeted policy. Only selected processes
#               are protected.
#     mls - Multi Level Security protection.
SELINUXTYPE=targeted

The system reads this file at boot time and configures SELinux as shown. Kernel arguments (selinux=0|1 and enforcing=0|1) override this configuration.
